Description

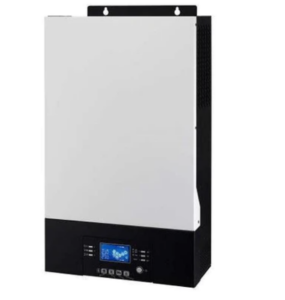

Mecer Axpert 8K 8kVA/8kW Hybrid Pure Sine Wave Inverter SOL-I-AX-8M

Specifications

• Model: SOL-I-AXMAX-8K48V.
• Rated Power: 8000VA/8000W.
• Parallel Capability: Yes, 6 units.

Input

• Voltage: 230 VAC.
• Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances).
• Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

• AC Voltage Regulation (Batt. Mode): 230VAC ± 5%.
• Efficiency (Peak): 90% ~ 93%.
• Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances).
• Waveform: Pure sine wave.
• No Load Power Consumption: <70W.

Solar Charger Type: MPPT.

• Maximum PV Array Power: 8000W (4000W x 2).
• MPP Range @ Operating Voltage: 90 ~ 450 VDC.
• Maximum PV Array Open Circuit Voltage: 500 VDC.
• Number of MPP Trackers: 2.
• Maximum Solar Charge Current: 120 A.
• Maximum AC Charge Current: 120 A.
• Maximum Charge Current: 120 A.
• Communication Interface: USB/RS232/RS485/Wifi/Dry contact.
• IP Rating: IP21.

Environment

• Altitude: 1000m and de-rate by 1% for every 100m above 1000m.
• Humidity 5% to 95% Relative Humidity (Non-condensing).
• Operating Temperature: -10°C to 50°C (with over-temp protection in case inner component temperature reaches protection level.).
• Storage Temperature: -15°C to 60°C.
